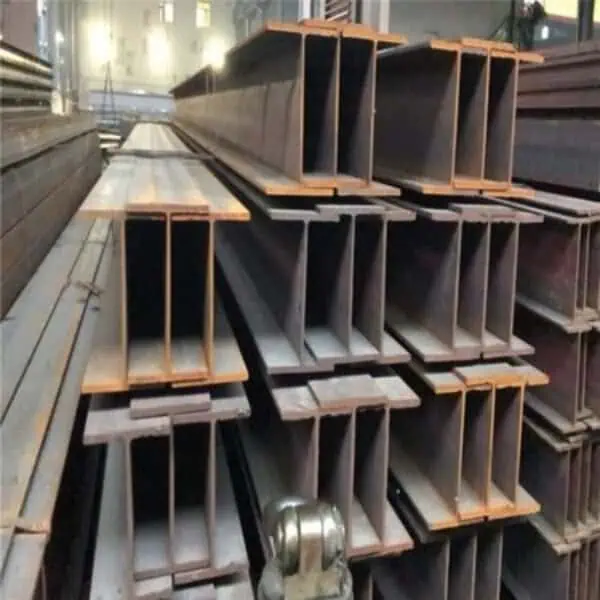

Yuanchiโs ASTM A992 H Beam Steel is specifically designed for use in structural applications requiring superior strength and load-bearing efficiency. It stands out for its excellent resistance to bending, high tensile strength, and good weldability, ensuring its performance in demanding construction projects. The H-shape design of the beam provides a wide flange for maximum stability, making it suitable for both compression and tension loads. ASTM A992 is also known for its superior ductility, which enhances its ability to withstand extreme forces without compromising structural integrity.
Specifications Table for ASTM A992 H Beam Steel
| Property | Specification |
|---|---|
| Material Grade | ASTM A992 |
| Standard | ASTM A992, JIS G3101, EN 10034 |
| Length | Customizable (Standard: 6m, 12m) |
| Dimensions (Width x Height) | 100mm – 900mm x 100mm – 300mm |
| Web Thickness | 5mm – 20mm |
| Flange Thickness | 6mm – 25mm |
| Chemical Composition | Carbon (0.23% – 0.26%), Manganese (0.60% – 1.35%), Phosphorus (Max 0.04%), Sulfur (Max 0.05%) |
| Tensile Strength | 450 – 620 MPa |
| Yield Strength | 345 MPa |
| Elongation | 20% minimum (for a 200mm gauge length) |
| Surface Finish | Hot rolled, Galvanized, Painted (Optional) |
| Certification | ISO 9001, CE, SGS |
Applications of ASTM A992 H Beam Steel
- Building Construction: Ideal for use in the framing of high-rise buildings and structural steel applications due to its strength and stability.
- Bridge Construction: ASTM A992 H Beams are widely used in the construction of road and rail bridges for their high load-bearing capacity and durability.
- Industrial Applications: Its strength and flexibility make it perfect for large industrial facilities, warehouses, and heavy machinery supports.
Packaging and Shipping
Yuanchi ensures that all ASTM A992 H Beam Steel is packaged with the utmost care to protect the product from damage during transit. We use a combination of protective materials such as plastic wrap and wooden crates for secure packaging. With extensive experience in international logistics, we offer flexible shipping options, including both sea and air freight, to deliver your order on time and in perfect condition. Our global network and attention to detail guarantee a smooth and efficient shipping process.
FAQ about ASTM A992 H Beam Steel
- What makes ASTM A992 H Beam Steel different from other structural steels?
- ASTM A992 is designed specifically for use in structural applications where superior strength and load-bearing capacity are required, particularly in bridges and high-rise buildings.
- Can ASTM A992 H Beam Steel be welded easily?
- Yes, ASTM A992 is highly weldable, making it suitable for various construction methods involving welded connections.
- What is the yield strength of ASTM A992 H Beam Steel?
- The yield strength of ASTM A992 is 345 MPa, providing excellent resistance to bending and deformation.
- Can you provide custom sizes for ASTM A992 H Beam Steel?
- Yes, Yuanchi offers ASTM A992 H Beam Steel in a wide range of sizes, and we can customize dimensions according to your project requirements.
- Is ASTM A992 H Beam Steel suitable for use in seismic regions?
- Yes, ASTM A992 is known for its ductility and resistance to dynamic forces, making it an excellent choice for applications in seismic areas.
- What are the key advantages of using ASTM A992 H Beam Steel?
- The key advantages include high tensile strength, excellent weldability, high resistance to bending, and superior ductility, making it ideal for structural and heavy-duty applications.
With Yuanchiโs ASTM A992 H Beam Steel, you can rely on top-quality material that meets the highest standards for structural integrity. Whether for large-scale construction, industrial projects, or bridge construction, our ASTM A992 H Beams ensure durability and efficiency throughout the lifespan of your projects.
