HEB100 H Beam Steel

HEB100 H Beam Steel is a high-performance structural steel beam designed for a wide range of construction and industrial applications. With its robust profile and high load-bearing capacity, the HEB100 is ideal for use in heavy-duty frameworks, such as buildings, ponts, and machinery supports. Yuanchi Metal provides HEB100 H Beam Steel that adheres to international standards, ensuring durability, force, and versatility in various construction projects.

HEB100 H Beam Steel

Prix ​​FOB : A négocier

Détail rapide

Quantité minimale de commande:≥1 tonne Origine: Shandong,Chine

Garantie: 5 Années de livraison: 0-15 Jour

Mode de paiement

Tous acceptés

Personnalisation

Disponible

Expédition

Fret maritime ou terrestre

Caractéristiques uniques:

HEB100 H Beam Steel features a thicker web and flange compared to other beam types, offering superior load distribution and greater resistance to bending. Its strong, wide flange and excellent mechanical properties make it ideal for heavy structural applications that require stability and strength. The HEB100 beam is also easy to fabricate and weld, ensuring that it is an efficient solution for large-scale construction projects and industrial installations.

Technical Specifications:

Propriété Valeur
Grade HEB100
Standard DANS 10034, DANS 10365
Height (H) 100mm
Flange Width (B) 100mm
Web Thickness (t_w) 6mm
Flange Thickness (t_f) 8mm
Poids 14.6 kg/m
Limite d'élasticité 355 MPA
Résistance à la traction 490-630 MPA
Élongation 20%
Composition chimique Carbon (C): ≤0.23%, Manganese (Mn): 0.90-1.40%, Silicon (Si): ≤0.30%, Phosphorus (P): ≤0.035%, Sulfur (S): ≤0.035%
Tolérance +/- 0.05mm

Applications:

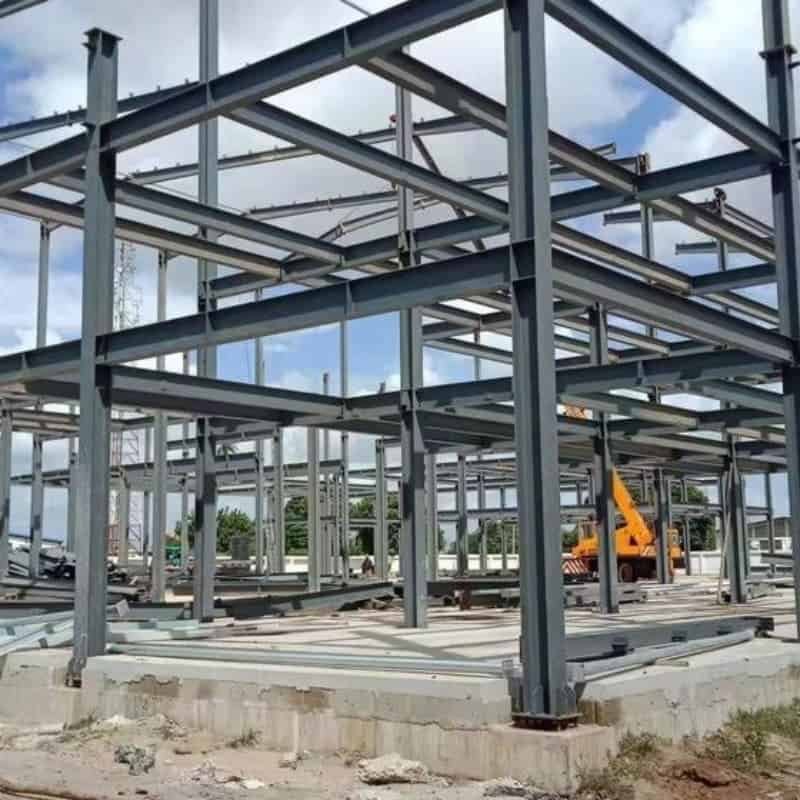

  1. Construction: Commonly used in the construction of medium to large-scale buildings, including commercial, residential, and industrial structures.
  2. Bridges & Infrastructure: Ideal for constructing bridges, overpasses, and other heavy-duty infrastructure projects.
  3. Heavy Machinery Support: Used in the fabrication of frameworks and support structures for heavy machinery, such as cranes and industrial equipment.

142

Conditionnement & Expédition:

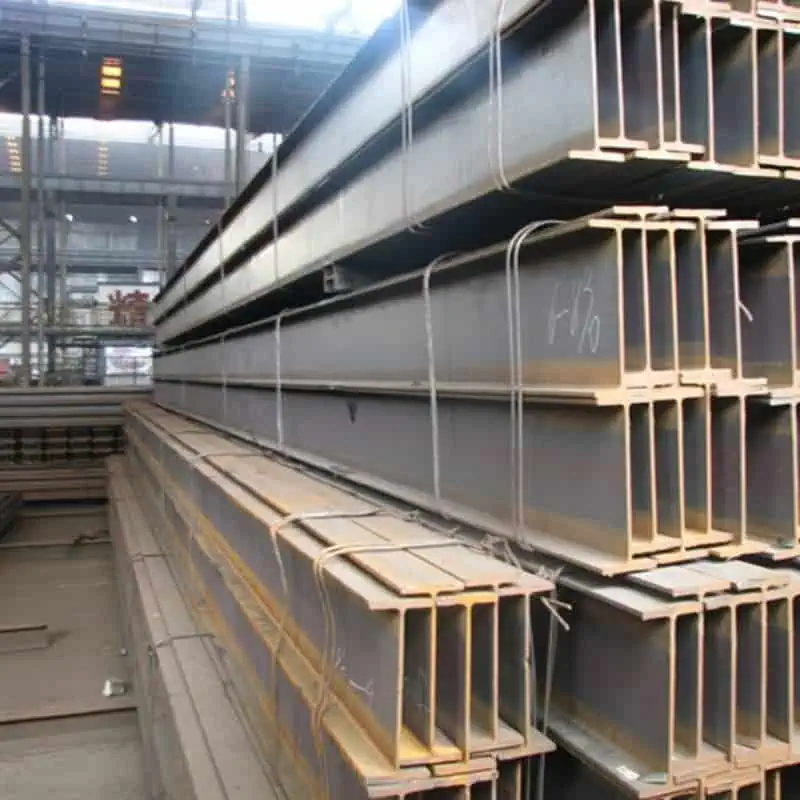

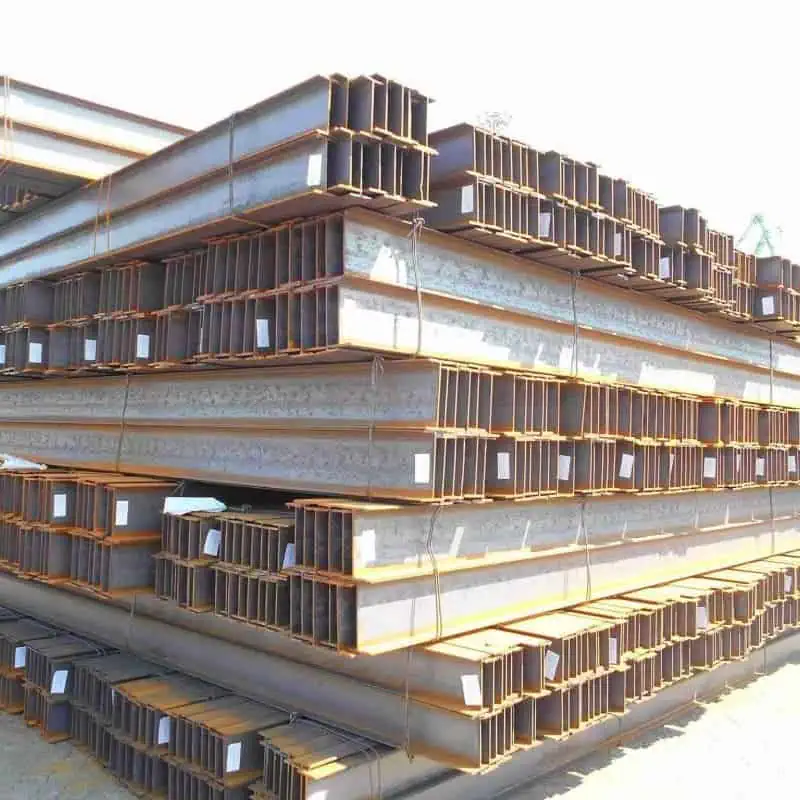

Yuanchi Metal ensures that all HEB100 H Beam Steel is securely packed and shipped to prevent damage during transportation. The beams are wrapped in protective coatings or secured with wooden pallets and steel banding. We offer both bulk and containerized shipping options, with timely and reliable delivery to meet your construction or industrial project needs.

130

Frequently Asked Questions (FAQ):

  1. What is HEB100 H Beam Steel used for?
    • HEB100 H Beam Steel is used in a variety of heavy-duty structural applications such as construction, ponts, and industrial machinery support.
  2. What is the size and weight of the HEB100 H Beam?
    • The HEB100 H Beam has a height of 100mm, a flange width of 100mm, and weighs 14.6 kg/m.
  3. Can HEB100 H Beam Steel be welded easily?
    • Oui, HEB100 H Beam Steel has excellent weldability, making it easy to fabricate and integrate into your construction or industrial projects.
  4. What are the mechanical properties of HEB100 H Beam Steel?
    • The HEB100 H Beam has a yield strength of ≥ 355 MPA, tensile strength between 490-630 MPA, and an elongation of ≥ 20%.
  5. Can I order custom sizes of HEB100 H Beam Steel?
    • Oui, Yuanchi Metal offers customized lengths and sizes of HEB100 H Beam Steel to meet the specific needs of your project.
  6. What is the lead time for shipping HEB100 H Beam Steel?
    • The typical lead time for HEB100 H Beam Steel is 10-15 jours, depending on the order size and destination. We ensure efficient and timely delivery to ensure your project stays on track.
