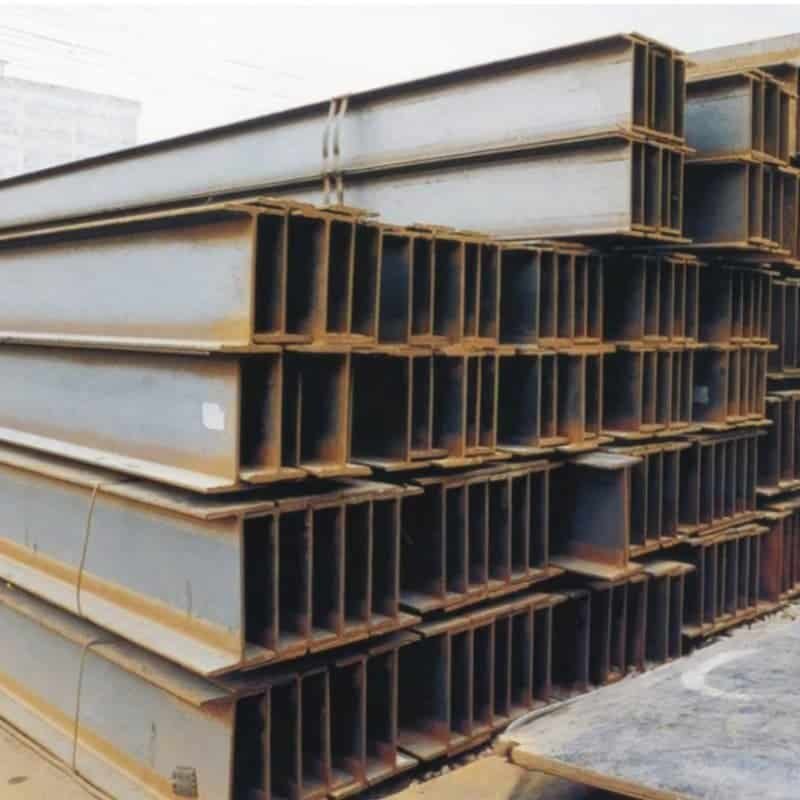

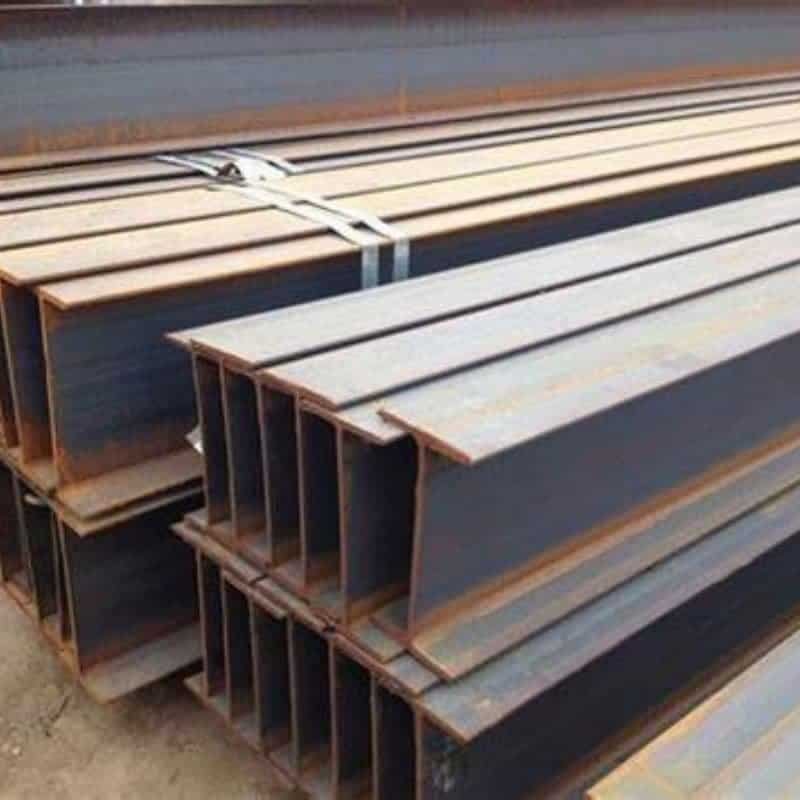

HEA140 H Beam Steel stands out for its excellent load-bearing properties, achieved through its wide flange design and deep web. This design ensures that forces are distributed efficiently, enhancing both bending and shear resistance. HEA140’s high strength-to-weight ratio allows for maximum material efficiency, reducing overall costs without compromising performance. The steel’s versatility and ease of welding make it highly adaptable to various construction needs. With a tensile strength of up to 510 MPa, HEA140 provides the necessary structural integrity for both residential and commercial projects.
Specifications Table for HEA140 H Beam Steel
| Property | Specification |
|---|---|
| Material Grade | HEA (European Standard) |
| Standart | IN 10034, DIN 1025 |
| Uzunluq | Özelleştirilebilir (Standart: 6m, 12m) |
| Dimensions (Width x Height) | 140mm x 140mm – 140mm x 400mm |
| Web Thickness | 7mm – 16mm |
| Flange Thickness | 12mm – 25mm |
| Kimyəvi Tərkibi | Carbon (0.14% – 0.20%), Manganese (0.50% – 0.80%), Phosphorus (Max 0.035%), Sulfur (Max 0.035%) |
| Dartma Gücü | 360 – 510 MPa |
| Məhsuldarlıq Gücü | 250 – 355 MPa |
| Uzatma | 20% minimum (for a 200mm gauge length) |
| Səthi bitirmə | Hot rolled, Sinklənmiş, Painted (Optional) |
| Certification | İSo 9001, CE, SGS |
Applications of HEA140 H Beam Steel
- High-rise Buildings: HEA140 H Beams are ideal for use in the construction of multi-story buildings, where they provide strong support for structural frames and floors.
- Bridge Construction: With its superior load-bearing capacity, HEA140 is a popular choice for building bridges, overpasses, and other infrastructure projects.
- Industrial Structures: HEA140 H Beam Steel is widely used in factories, warehouses, and other industrial facilities where strength and stability are crucial to support heavy machinery and equipment.
Qablaşdırma və Göndərmə
Yuanchi ensures that all HEA140 H Beam Steel products are carefully packaged to prevent damage during transit. Each beam is wrapped in protective plastic and reinforced with wooden crates or steel bands to ensure safe delivery. We offer both sea and air freight shipping options, depending on your needs and location. Our logistics team works efficiently to guarantee timely delivery, ensuring that your HEA140 H Beam Steel arrives in optimal condition and ready for immediate use.
FAQ about HEA140 H Beam Steel
- What makes HEA140 H Beam Steel suitable for heavy-duty construction?
- HEA140 features a wide flange design and deep web, which enhances its load-bearing capacity and resistance to bending, making it ideal for high-demand applications like bridges and high-rise buildings.
- Can HEA140 H Beam Steel be welded easily?
- Bəli, HEA140 is designed for excellent weldability, allowing it to be integrated into complex structures with ease.
- What is the tensile strength of HEA140 H Beam Steel?
- The tensile strength of HEA140 ranges from 360 MPa to 510 MPa, providing robust performance under heavy loads.
- Can you customize the size of HEA140 H Beam Steel?
- Bəli, we offer HEA140 H Beam Steel in a variety of sizes and lengths and can customize the dimensions to meet your project requirements.
- Is HEA140 H Beam Steel suitable for use in seismic regions?
- Bəli, HEA140’s high strength and ductility make it an excellent choice for structures located in seismic zones, offering the flexibility and resilience required to withstand dynamic forces.
- What types of surface finishes are available for HEA140 H Beam Steel?
- HEA140 H Beam Steel comes with a hot-rolled surface finish, and we also offer galvanized or painted finishes upon request for enhanced corrosion protection.
Yuanchi’s HEA140 H Beam Steel is engineered for high performance and durability. Whether you’re working on a high-rise building, a bridge, or an industrial facility, HEA140 provides the strength, stability, and adaptability needed for long-lasting structural success. Trust HEA140 H Beam Steel to meet the challenges of your most demanding construction projects.
