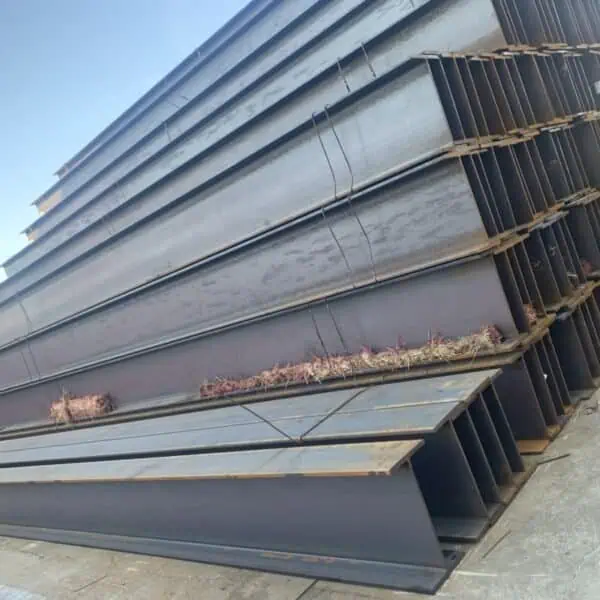

W6×9 A572 GR50 H Beam Steel is a high-strength structural steel product primarily used in construction and engineering projects. It is a part of the W-section beam family, offering excellent load-bearing capacity. This beam is crafted from A572 Grade 50 steel, a high-strength, low-alloy steel designed for improved strength and weldability. The W6×9 designates the nominal depth of 6 inches and a weight of 9 pounds per foot, making it versatile for various applications, especially in structural frameworks.
MOQ:≥1 Ton Origin: Shandong,الصين
Warranty: 5 Years Delivery: 0-15 Day
All accepted
Available
Sea or Land Freight
The W6*9 A572GR50 H Beam Steel features enhanced strength and versatility, designed for demanding structural applications. Its high yield strength of 50,000 psi ensures superior load resistance while maintaining excellent weldability. This product is ideal for constructions where durability and strength are critical, such as in large-scale infrastructure projects. The “W” designation indicates its wide flange, which offers improved load distribution and stability. Available in various lengths and grades, it caters to diverse project needs, offering both cost-efficiency and reliable performance.
| Parameter | Details |
|---|---|
| Grade | A572GR50 |
| Section Type | W (Wide Flange) |
| Dimensions | |
| – عرض شفة | 6 بوصة |
| – سمك الويب | 0.23 بوصة |
| – سمك شفة | 0.41 بوصة |
| – Depth | 6 بوصة |
| – وزن | 9 lbs per foot |
| Chemical Composition | |
| – Carbon (C) | 0.23-0.28% |
| – Manganese (Mn) | 1.35-1.65% |
| – Phosphorus (P) | ≤ 0.035% |
| – Sulfur (S) | ≤ 0.035% |
| – Silicon (Si) | 0.15-0.40% |
| – Copper (Cu) | 0.20-0.35% |
| – Vanadium (V) | 0.02-0.08% |
| – Nickel (Ni) | 0.40-0.70% |
| – Chromium (Cr) | ≤ 0.20% |
| Tolerance | Conforms to ASTM A572 / A572M standards |
| معيار | ASTM A572GR50 |
| الانتهاء من السطح | Mill Finish, Shot Blasted, or Custom Finish |
